Thermann Heat Pumps

Heat pumps extract heat from the surrounding environment and use it to warm water in a tank.

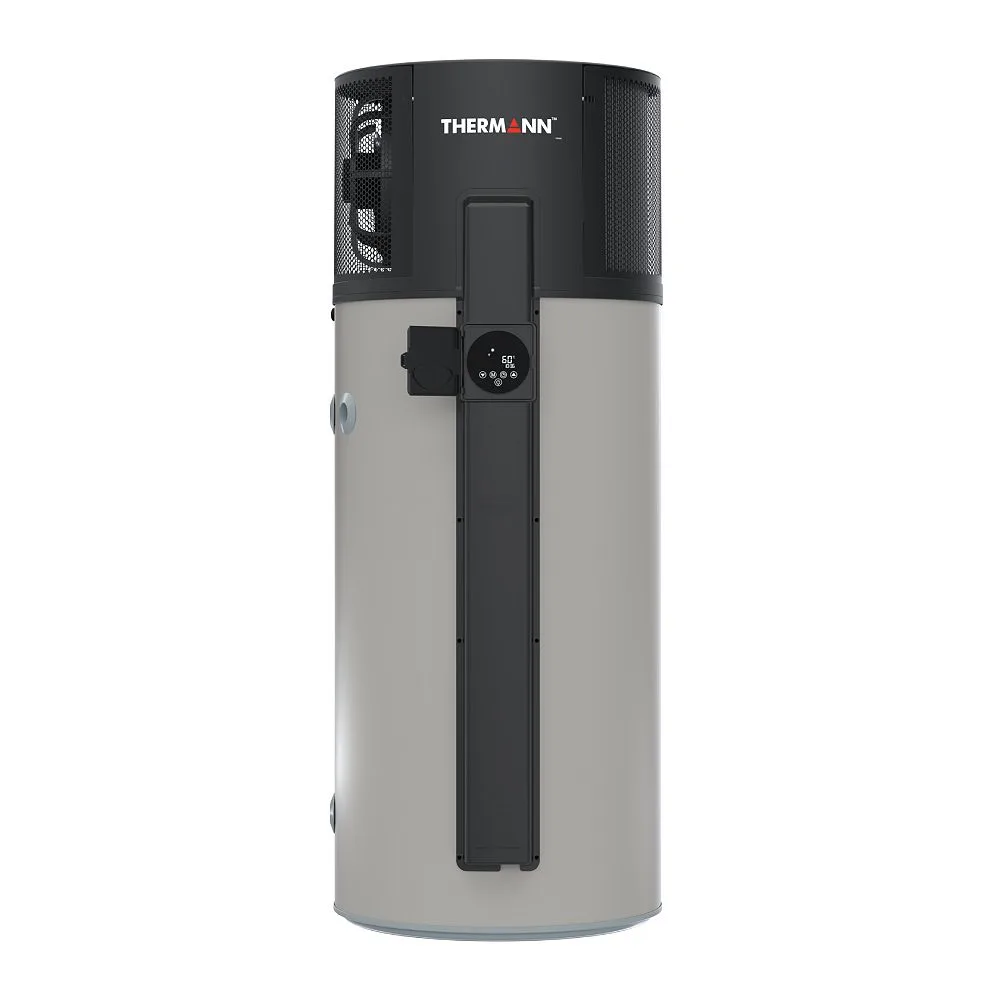

Thermann Integrated Heat Pump

Specification	Thermann Integrated Heat Pump 220L
Model	Thermann Integrated Heat Pump 220L
Tank Capacity	220 Litres
People Served	2–5
Power Supply	240V / 50Hz
Refrigerant Type	R134a
Element Size	1.8kW
COP	Up to 4.5
Installation	Outdoor only
Dimensions (H x D)	1960mm x 640mm
Weight (empty)	105 kg
Warranty – Cylinder	5 years
Warranty – Parts & Labour	2 years

Features

Energy Efficient: Uses ambient air to heat water, significantly reducing energy consumption.
Government Rebate Eligible: May qualify for STCs and other local energy efficiency incentives.
Quiet Operation: Designed for minimal operational noise.
Environmentally Friendly: Low-GWP refrigerants and efficient technology reduce carbon footprint.
Durable Design: Built for Australian conditions with corrosion-resistant tank and housing.

Additional Information

Pressure Relief Valve Setting: 1000 kPa
Expansion Control Valve Setting: 850 kPa

Maximum Supply Pressure:

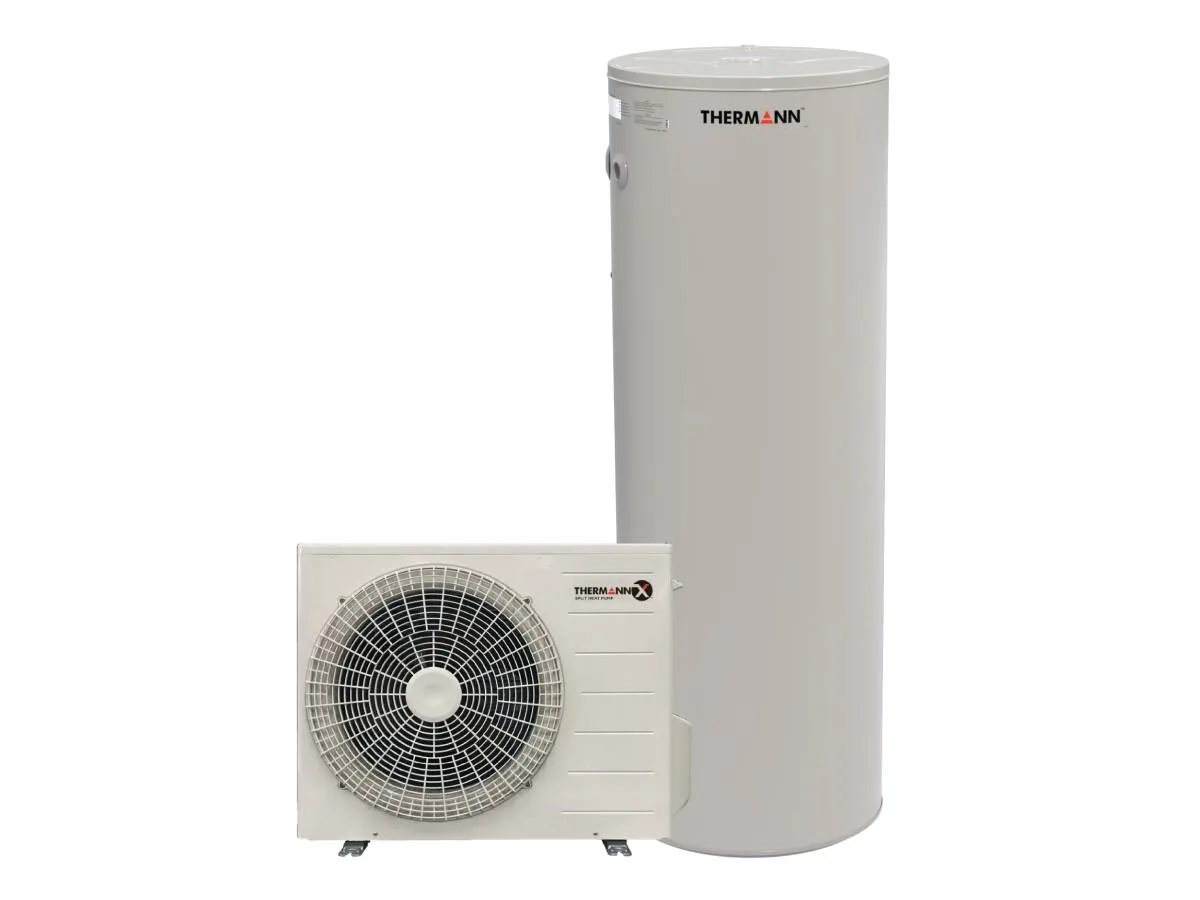

Specification	Thermann Split Heat Pump 300L
Model	Thermann Split Heat Pump 300L
Tank Capacity	300 Litres
People Served	3–6
Power Supply	240V / 50Hz
Refrigerant Type	R290
Element Size	1.8kW
COP	Up to 4.8
Installation	Outdoor condenser, indoor tank
Dimensions (Tank)	1762mm x 620mm
Dimensions (Compressor)	745mm x 480mm x 300mm
Weight (empty tank)	105 kg
Warranty – Cylinder	7 years
Warranty – Parts & Labour	2 years

Energy Efficient: Uses ambient air to heat water, significantly reducing energy consumption.
Government Rebate Eligible: May qualify for STCs and other local energy efficiency incentives.
Quiet Operation: Designed for minimal operational noise.
Environmentally Friendly: Low-GWP refrigerants and efficient technology reduce carbon footprint.
Durable Design: Built for Australian conditions, with corrosion-resistant tank and housing.

Pressure Relief Valve Setting: 1000 kPa
Expansion Control Valve Setting: 850 kPa

Whether your system has failed, you’re planning an upgrade, or simply need honest advice — we’re here to help.
